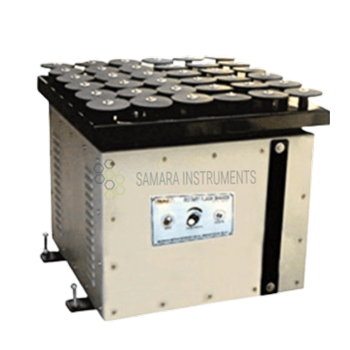

Rotary Flask Shaker

Description

A rotary flask shaker is a laboratory instrument used for the agitation and mixing of liquid samples contained within flasks or bottles. It provides a controlled, oscillating motion to the flasks, facilitating efficient mixing, extraction, or chemical reactions. Rotary flask shakers are commonly used in various scientific and research applications, including chemistry, biology, pharmaceuticals, and environmental analysis.

The primary purpose of a rotary flask shaker is to provide consistent and reproducible agitation to the samples, promoting mixing, dissolution, extraction, or other desired processes. The instrument consists of a motor-driven platform with multiple holders or clamps to securely hold the flasks. The platform oscillates in a rotary motion, causing the contents of the flasks to move and mix.



Rotary flask shakers offer several advantages for laboratory applications:

  • Adjustable Speed and Timer
  • Multiple Flask Capacity
  • Gentle and Uniform Shaking
  • Versatility in Flask Types
  • Platform Stability and Leveling
  • Easy Operation and Control
  • Compatibility with Incubation
  • Safety Features

Rotary flask shakers are widely used in laboratories for a range of applications, including sample mixing, solubility studies, extraction, microbial cultivation, and cell culture. They provide a reliable and efficient means of agitation, enabling researchers to achieve consistent and reproducible results in their experiments.

Optional Accessories:

  • DC MOTOR DRIVE with CONTINUOUSLY VARIABLE ELECTRONIC SPEED REGULATOR in lieu of mechanical speed control and A.C. motor
  • Digital RPM counter LED Display with sensor
  • Automatic 0 – 60 minute timer
  • Rubber Disc for above (Extra)

Features

  • Designed specifically for continues shaking of solution in Erlenmeyer Flasks
  • Platform fitted with rubber discs mounted on ball-bearing crankshafts
  • Mechanical speed controller for controlling speed
  • Works in 220 volts A.C supply
  • Available in Mild Steel painted platform with rubber discs to hold flasks
  • Adjustable Speed Control
  • Multiple Flask Capacity
  • Programmable Timer
  • Gentle and Uniform Shaking
  • Versatility in Flask Types
  • Platform Stability and Leveling
  • Easy Operation and Control
  • Compatibility with Incubation
  • Safety Features
  • Compact and Portable Design



Specification:

Mainly used for mixing of chemicals, solvents/solutions and are most suitable for shaking in Erlenmeyer flasks Body is mounted on heavy duty M.S. angle iron frame duly painted. The platform is made of thick mild steel sheet-duty paint fitted with rubber discs to hold Erlenmeyer Flasks of different capacities. The platform is mounted on ball bearing crankshafts with an orbital dia. of approx. 1.5″ to 2. Heavy duty motor coupled by means of V – Belt with pitch pulley system is housed inside the frame. Speed can be controlled through a mechanical speed control system. 150 to 200 rpm Work on 2201230 volts A.C. supply.

Specifications

Model No.Platform sizeMotor capacityHolding capacity
SI - RFS/0130 x 30 cm0.25 H P9 flasks /250 ml
SI - RFS/0245 x 45 cm0.25 H P16 flasks /250 ml
SI - RFS/0345 x 45 cm0.25 H P25 flasks /100 ml
SI - RFS/0445 x 45 cm0.25 H P9 flasks /500 ml
SI - RFS/0555 x 55 cm0.25 H P36 flasks /100 ml
SI - RFS/0655 x 55 cm0.25 H P25 flasks /250 ml
SI - RFS/0755 x 55 cm0.25 H P16 flasks /500 ml
SI - RFS/0865 x 65 cm0.50 H P36 flasks /250 ml
SI - RFS/0965 x 65 cm0.50 H P25 flasks /500 ml
SI - RFS/10105 x 105 cm1.0 H P81 flasks /250 ml
SI - RFS/11105 x 105 cm1.0 H P64 flasks /500 ml
SI - RFS/12105 x 105 cm1.0 H P49 flasks /1000 ml
SI - RFS/1365 x 65 cm0.50 H P36 flasks /500 ml
SI - RFS/1592 x 92 cm0.25 H P49 flasks /500 ml
SI - RFS/16102 x 102 cm0.50 H P64 flasks /500 ml
SI - RFS/16122 x 122 cm1.0 H P81 flasks /500 ml
SI - RFS/17152 x 152 cm1.0 H P100 flasks /500 ml
SI - RFS/18190 x 190 cm1.0 H P121 flasks /500 ml
All above mentioned sizes are Also available in Double decker shaker
