Biosafety Cabinets are engineered to provide a safe and sterile working environment for handling Read more

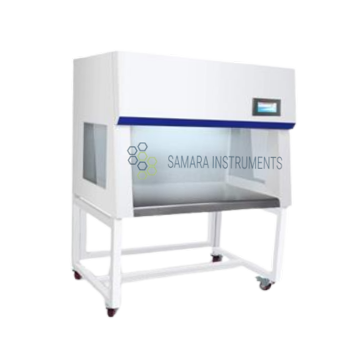

The SI/FM Series Biosafety Cabinets are engineered to provide a safe and sterile working environment for handling sensitive biological samples and hazardous materials. Designed for laboratories, research facilities, and healthcare institutions, these cabinets combine advanced airflow technology, robust construction, and user-centric features to ensure maximum protection for personnel, products, and the environment.
| Model | External Size (mm) | Internal Size (mm) | Gross Weight |
|---|---|---|---|
| SI/FM-10 | 1000 × 840 × 2150 | 880 × 730 × 745 | 230 kg |
| SI/FM-12 | 1200 × 840 × 2150 | 1080 × 650 × 1500 | — |
| SI/FM-15 | 1500 × 840 × 2150 | 1380 × 650 × 1500 | — |
| SI/FM-18 | 1800 × 850 × 2150 | 1680 × 650 × 1500 | 340 kg |
|
Model
No. |
SI/FM-10 |
SI/FM-12 |
SI/FM-15 |
SI/FM-18 |
|
External
Size |
1000x840x2150mm |
1200x840x2150mm |
1500x840x2150mm |
1800x850x2150mm |
|
Internal
Size |
880x730x745mm |
1080x650x1500mm |
1380x650x1500mm |
1680x650x1500mm |
|
Make |
SS
304 or MS Power Coated |
|||
|
Blower |
Built
ion Centrifugal Blower, Speed Adjustable with 9 Levels |
|
||
|
Inflow
Air Velocity |
≥0.3m/s |
|||
|
|
|
|
||
|
Noise |
Less
than 60db |
|||
|
Coating |
Epoxy
coating |
|
||
|
U V
Lamp |
Emission
of 253.7 nanometers for most efficient decontamination |
|||
|
Front
Window |
Motorized
Toughened Glass,Anti UV |
|
||
|
Exterior
Material |
||||
|
|
Cold
rolled steel with anti bacterial powder coating |
|
||
|
Work
Table: Chemical resistant coating phenolic resin |
||||
|
Power
Supply |
AC220±10%,
50/60Hz;110±10%,60Hz |
|
||
|
Standard
Accessory |
Water
Tap, Gas Tap, Water Sink, Base Stand , UV Lamp 2 Fluorescent lamp FH
(1000X) with one waterproof socket consumption not more than 500 W, the rest
models with two water proof sockets consumption not more than 500W , 4 Meters
exhaust duct , Active Carbon filter , Foot Switch |
|||
|
|
|
|
||
|
Gross
Weight |
340kg |
|||
|
|
230kg |
|
||
|
Package
Size(wxdxh) |
1230x1120x1680mm |
1980x1120x1680mm |
||
