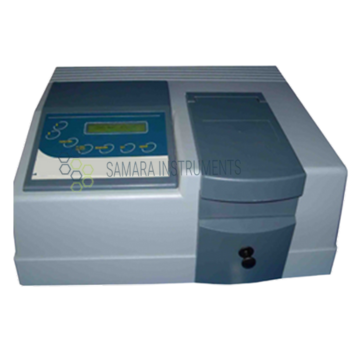

UV Spectrophoto Meter

A UV spectrophotometer is specifically designed to measure the absorbance of light in the ultraviolet (UV) range Read more

Categories: Laboratory Meters
Share:

A UV spectrophotometer is specifically designed to measure the absorbance of light in the ultraviolet (UV) range of the electromagnetic spectrum, typically between 190 to 380 nanometers (nm). It utilizes a UV light source and a detector to analyze the interactions of UV light with the sample. UV spectrophotometers are widely used in the analysis of organic compounds, including nucleic acids, proteins, and various pharmaceutical substances.

Key Features and Applications of UV Spectrophotometers:

  • UV wavelength range: 190-380 nm
  • Suitable for analyzing samples with UV-absorbing chromophores
  • Typical applications include DNA/RNA quantification, protein concentration determination, enzymatic activity assays, drug analysis, and quality control in pharmaceutical industries.
  • Some UV spectrophotometers allow for scanning across a range of wavelengths to obtain a complete absorption spectrum of the sample.

A spectrophotometer is a more general instrument that measures the absorbance or transmittance of light over a broader range of the electromagnetic spectrum, typically from the UV to the visible and sometimes near-infrared regions. It consists of a light source, a monochromator to select specific wavelengths, a sample holder, and a detector. Spectrophotometers can be further classified based on the range of wavelengths they cover, such as UV-Vis spectrophotometers and visible spectrophotometers.

Key Features and Applications of Spectrophotometers:

  • The wavelength range varies based on the instrument type. UV-Vis spectrophotometers cover both the UV and visible (Vis) range, typically from 190 to 900 nm or 1100 nm, while visible spectrophotometers focus on the visible range.
  • They are widely used for quantitative analysis of various substances, including organic and inorganic compounds.
  • Applications include colourimetric assays, chemical kinetics studies, environmental analysis, food and beverage quality control, and water analysis, among others.
  • Spectrophotometers can perform single wavelength measurements or scan across a range of wavelengths to generate absorption spectra.

In summary, UV spectrophotometers are specialized instruments tailored for analyzing samples in the UV range, while spectrophotometers have a broader wavelength range, including the UV and visible regions. The choice between UV and spectrophotometer depends on the specific application and the range of wavelengths needed for analysis.


Model NoSI/UV-VS/D/2375
ModesBasic, Wavelength Scan, Multi-Wavelength,Kinetics, Quantitative, DNA/Protein
Wavelength Range190 – 1100 nm
Spectral Bandwidth1.0 nm
Optical SystemDouble Beam, Grating 1200 lines/mm
Wavelength Accuracy± 0.3 nm
Wavelength Repeatability± 0.2 nm
Scanning SpeedHI, MED, LOW, MAX. 3000 nm/min
Photometric Accuracy± 0.3 %T or ± 0.002 A/h @ 1A
Photometric Range0 – 200 %T, -0.3 to 3A, 0 – 9999 Conc.
Stray Light< 0.05 %T @ 220, 340 nm
Stability± 0.001 A/h @ 500 nm
Display5 inches Graphic LCD (320 x 240 dots)
Baseline Flatness± 0.001A/h (200 – 1000 nm)
Sample CompartmentStandard 8 cell with automatic cell changer – 10 mm path-length, (50 & 100 mm path-length optional at extra cost)
Light SourceHalogen and Deuterium lamps (Pre-Aligned)
OutputUSB Port for PC connectivity, Parallel Port for Dot Matrix Printer
Power230 V ± 10% AC, 50 Hz
Dimensions (L x B x H)Instrument: 590 x 455 x 250 mm (Approx.)
Box: 650 x 535 x 335 mm (Approx.)
WeightInstrument: 17.5 Kg (Approx.)
Box: 20 Kg (Approx.)
AccessoriesOperation Manual and Dust Cover

  • Double Beam Optics
  • Large 5 Inch Graphical Display
  • Auto Wavelength Setting
  • On-Screen Cuve Display
  • Tungsten/Deuterium Lamp can be turned ON/OFF individually to Extend Lifetime
  • Application Software provides complete control of the Instrument from a Computer through the built-in USB Port
  • Basic, Wavelength Scan, Multi-Wavelength, Quantitative, DNA/ Protein modes
  • Pre-Aligned design makes it convenient to change Lamp
  • Large Sample Compartment can accommodate 5 – 100 mm path-length cuvettes with optional holders. 8-Position Auto Cell Changer of 10 mm path-length provided.
  • Wavelength Range
  • UV Light Source
  • Sample Holder
  • Monochromator/Filter System
  • Photodetector
  • Absorbance Measurement
  • Scanning Capability
  • Calibration and Quality Control
  • Connectivity and Compatibility
