Fume Hood

Fume Hoods are advanced containment systems designed to ensure safe handling of hazardous chemicals Read more

Categories: Testing Equipments

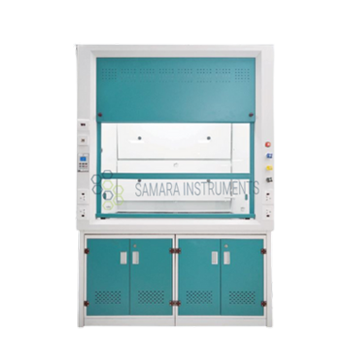

Laboratory Fume Hood Series – SI/FM-10 to SI/FM-18

The SI/FM Series Fume Hoods are advanced containment systems designed to ensure safe handling of hazardous chemicals and vapors in laboratory environments. Available in multiple sizes to suit diverse workspace requirements, these fume hoods combine robust construction, efficient airflow, and user-friendly features to deliver optimal protection and performance.

Available Models & Dimensions:

Model	External Size (mm)	Internal Size (mm)	Capacity
SI/FM-10	1000 × 840 × 2150	880 × 730 × 745	Compact
SI/FM-12	1200 × 840 × 2150	1080 × 650 × 1500	Medium
SI/FM-15	1500 × 840 × 2150	1380 × 650 × 1500	Large
SI/FM-18	1800 × 850 × 2150	1680 × 650 × 1500	Extra Large

Standard Accessories:

Water tap, gas tap, and water sink
Base stand
UV lamp and fluorescent lighting
Waterproof sockets (1 for SI/FM-10, 2 for other models)
4-meter exhaust duct
Activated carbon filter
Foot switch for hands-free operation

Packaging & Weight:

Gross Weight: Ranges from 230 kg to 340 kg depending on model
Package Sizes:
- SI/FM-10: 1230 × 1120 × 1680 mm
- SI/FM-18: 1980 × 1120 × 1680 mm

Model No.	SI/FM-10	SI/FM-12	SI/FM-15	SI/FM-18
External Size	1000x840x2150mm	1200x840x2150mm	1500x840x2150mm	1800x850x2150mm
Internal Size	880x730x745mm	1080x650x1500mm	1380x650x1500mm	1680x650x1500mm
Make	SS 304 or MS Power Coated
Blower	Built ion Centrifugal Blower, Speed Adjustable with 9 Levels
Inflow Air Velocity	≥0.3m/s

Noise	Less than 60db
Coating	Epoxy coating
U V Lamp	Emission of 253.7 nanometers for most efficient decontamination
Front Window	Motorized Toughened Glass,Anti UV
Exterior Material
	Cold rolled steel with anti bacterial powder coating
	Work Table: Chemical resistant coating phenolic resin
Power Supply	AC220±10%, 50/60Hz;110±10%,60Hz
Standard Accessory	Water Tap, Gas Tap, Water Sink, Base Stand , UV Lamp 2 Fluorescent lamp FH (1000X) with one waterproof socket consumption not more than 500 W, the rest models with two water proof sockets consumption not more than 500W , 4 Meters exhaust duct , Active Carbon filter , Foot Switch

Gross Weight				340kg
	230kg

Package Size(wxdxh)	1230x1120x1680mm			1980x1120x1680mm

Construction: Made from SS304 or powder-coated mild steel for durability and corrosion resistance
Blower System: Built-in centrifugal blower with 9 adjustable speed levels for optimal airflow
Air Velocity: Inflow air velocity ≥ 0.3 m/s ensures effective containment
Noise Level: Operates quietly at less than 60 dB
UV Decontamination: Integrated UV lamp emitting at 253.7 nm for efficient sterilization
Front Window: Motorized toughened glass with anti-UV coating for safety and ease of use
Work Surface: Chemical-resistant phenolic resin for long-lasting performance
Exterior Finish: Cold-rolled steel with antibacterial epoxy powder coating
Power Supply: Compatible with AC220±10%, 50/60Hz and 110±10%, 60Hz
Control Interface: LED display with touchscreen keypad for intuitive operation
Safety Alerts: Visual and audio alarms for real-time hazard notification

Construction: Made from SS304 or powder-coated mild steel for durability and corrosion resistance
Blower System: Built-in centrifugal blower with 9 adjustable speed levels for optimal airflow
Air Velocity: Inflow air velocity ≥ 0.3 m/s ensures effective containment
Noise Level: Operates quietly at less than 60 dB
UV Decontamination: Integrated UV lamp emitting at 253.7 nm for efficient sterilization
Front Window: Motorized toughened glass with anti-UV coating for safety and ease of use
Work Surface: Chemical-resistant phenolic resin for long-lasting performance
Exterior Finish: Cold-rolled steel with antibacterial epoxy powder coating
Power Supply: Compatible with AC220±10%, 50/60Hz and 110±10%, 60Hz
Control Interface: LED display with touchscreen keypad for intuitive operation
Safety Alerts: Visual and audio alarms for real-time hazard notification
