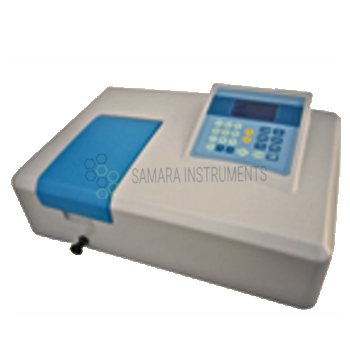

In UV spectrophotometry, the single beam configuration is a commonly used setup in which a sample and a reference are measured sequentially. Here is an introduction to the single beam UV spectrophotometer configuration:
| Model No | SI/UV-VS/S/2305 | |||
|---|---|---|---|---|
| Optics | Single Beam, Grating 1200 lines/mm | |||
| Wavelength Range | 325 - 1000 nm | |||
| Wavelength Resolution | 2 nm | |||
| Spectral Bandwidth | 4 nm | |||
| Wavelength Accuracy | ± 2 nm | |||
| Photometric Accuracy | ± 0.5 %T | |||
| Photometric Repeatability | 0.3 %T | |||
| Photometric Range | 0 - 200 %T, - 0.3 to 3A, 0 - 9999 Conc. | |||
| Photometric Mode | %Transmission, Absorbance, Concentration and K Factor | |||
| Stray Light | < 0.3 %T | |||
| Stability | ± 0.002 A/h @ 500 nm | |||
| Display | 4 Digit 7-Segment Bright Red LED | |||
| Detector | Silicon Photodiode | |||
| Sample Compartment | Standard 4-Position 10 mm path-length cuvette holder. Accommodates upto 100 mm path-length cuvette with optional holder | |||
| Output | USB port for PC Connectivity, Parallel Port for Dot Matirx Printer | |||
| Light Source | Tungsten Halogen Lamp | |||
| Power | 230 V ±10% AC, 50 Hz | |||
| Dimensions (L x B x H) | 420 x 280 x 180 mm (Approx.) | |||
| Weight | 8 Kg (Approx.) | |||
| Accessories | Operation Manual and Dust Cover |
