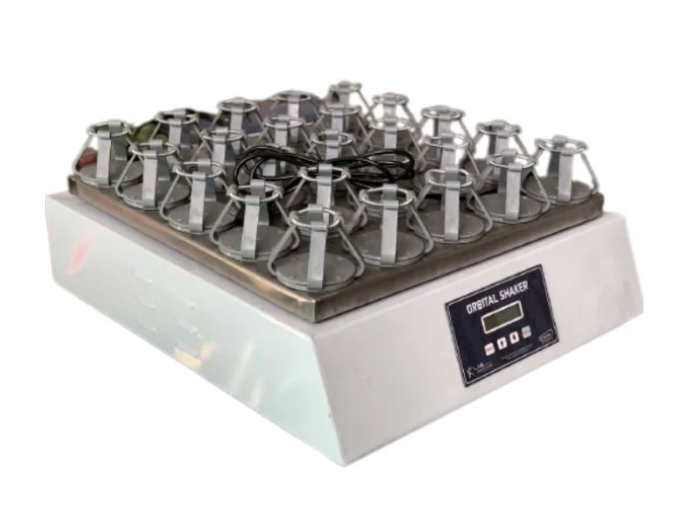

Orbital Shaker
An orbital shaker is a laboratory device used to mix, agitate, or stir samples in flasks, tubes, or dishes. It works by moving the platform in a circular (orbital) motion at a controlled speed. This consistent motion helps ensure even mixing of liquids, making it ideal for applications like cell culture, solubility studies, and general mixing in biology and chemistry labs. Read more
Model No | Platform Size (Approx Dimension) | Motor Capacity | Holding Capacity |
SI – OS/90 | 30 x 30 cm | 0.25 H P | 9 flasks / 250 ml |
SI – OS/250 | 45 x 45 cm | 0.25 H P | 16 flasks / 250 ml |
SI – OS/360 | 55 x 55 cm | 0.25 H P | 25 flasks / 250 ml |
SI – OS/810 | 65 x 65 cm | 0.50 H P | 36 flasks / 250 ml |
| Specification | |||||||
|---|---|---|---|---|---|---|---|
| Motion | Orbital | ||||||
| Platform Material | Stainless Steel | ||||||
| Power Supply | 220 Volts 50Hz/110 Volts | ||||||
| Material feed size | < 20 mm | ||||||
| Housing | Painted MS | ||||||
| RPM | 20 - 225 RPM | ||||||
| Amplitude | 25 MM | ||||||
| RPM Controller | Speed Regulator/Digital | ||||||
| Shaking mechanism | Brushless DC motor | ||||||
| Construction | Heavy iron angled frame | ||||||
| Optional | RPM LED display | Digital timer 0 ~ 999min | |||||
| Clamp MO | SS or Unbreakable plastic |
