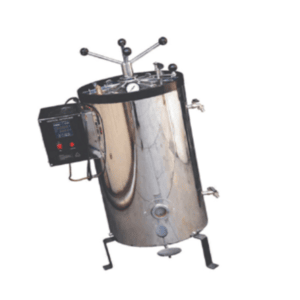

Vertical Autoclave (Deluxe Model)
Vertical Autoclave with Hydrotest Pressure – 2.5 kgf/cm² A high-quality autoclave featuring robust construction, stainless steel inner chamber, adjustable pressure control, and safety mechanisms — ideal for sterilization in laboratories and industrial settings. Read more
The Vertical Autoclave (Economy Model) is a double-walled cylindrical unit designed for reliable and efficient sterilization. With a hydrotest pressure of 2.5 kgf/cm² (35–40 psi), this autoclave ensures durability and safety under high-pressure conditions.
-
Outer Chamber: Made of high-quality mild steel, degreased, rust-proofed, and finished with powder-coated or stove enamel paint for long-lasting use.
-
Inner Chamber & Lid: Constructed with SS-304 grade stainless steel, offering superior corrosion resistance. The lid is also double-protected with stainless steel lining.
-
Safety & Pressure Features:
-
Radial locking system with paddle lifting device (chrome plated)
-
Built-in pressure gauge, safety valve, and pressure release valve
-
Adjustable pressure: 5 psi to 20 psi ±3 psi
-
Water level indicator for operational safety
-
-
Extras: Comes with a stainless steel basket and optional 21 CFR Part 11 compliance for validated environments (offered at ₹30,000 extra).
This autoclave is best suited for laboratories, pharmaceutical environments, and research institutions that demand precise sterilization with safety and regulatory compliance.
Specifications:
| Hydrotest Pressure | 2.5 kgf/cm sq.g (35 psi / 40 psi) |
| Construction | The outer chamber is made of thick mild steel sheet duly degreased and treated with primer for rust proofing duly painted with attractive stove ename/power coated. |
| Working Pressure | 1.2 kgf/cm sq.g (15 psi - 17 psi) (Can be Upgraded up to 30 PSI) |
| Sterilizing Temperature | 121°C to 134°C (150°C - Optional) |
| Heat Average | <=±1°C |
| Sterilization Time | 25 to 30 Minutes |
| Digital Timer | 0 to 99 min |
| Outer Chamber | Mild Steel (304 stainless Steel – Optional) |
| Inner Chamber | 304 SS (316 / 316L grades Stainless Steel – Optional) |
| Insulation | Glass Wool |
| Waste Container | Stainless Steel |
| Door / Lid | Foot lifted with safety and interlock device |
| Door Locking type | Radial Type (Wing Nut Optional) |
| Water Filling & Removal | Manual |
| Safety Features | Radial locking, safety valve, low water detector and pressure interlock |
| Power Supply | 220 Volts / 440 Volts |
Price LIst:
| Vertical Autoclave (Deluxe Model) |
| Model No | Size (Diameter x Height) | Volume (Liters) |
| SI – VA/50DM | 500 x 300 mm | 50 |
| SI – VA/78DM | 400 x 600 mm | 78 |
| SI – VA/100DM | 450 x 600 mm | 100 |
| SI – VA/125DM | 450 x 650 mm | 125 |
| SI – VA/200DM | 500 x 900 mm | 200 |
