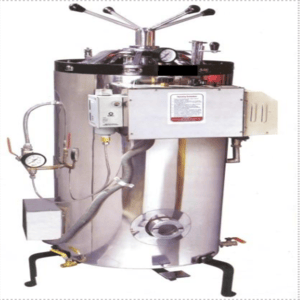

Vertical Autoclave - Triple Walled
Triple Walled Vertical Autoclave – High-Performance Sterilizer Engineered for maximum safety and efficiency, this triple-walled autoclave features stainless steel construction, radial locking, adjustable pressure, and digital controls — ideal for labs, pharma, and research setups. Read more
The Vertical Autoclave (Triple Walled) is a high-efficiency sterilization unit designed for rigorous laboratory and industrial use. Featuring hydrotest pressure of 2.5 kgf/cm² (35–40 psi), this autoclave ensures safety, durability, and performance.
Key Specifications & Features:
-
Hydrotest Pressure: 2.5 kgf/cm² (35 to 40 psi)
-
Working Pressure: 1.2 kgf/cm² (15 to 17 psi) — Upgradeable to 30 psi
-
Sterilizing Temperature: 121°C to 134°C (Up to 150°C – optional)
-
Heat Uniformity: ±1°C
-
Sterilization Time: 25 to 30 minutes
-
Digital Timer: 0–99 minutes
Construction Details:
-
Outer Chamber: Mild steel (SS-304 optional), powder-coated / stove enameled
-
Inner Chamber: SS-304 standard (316/316L optional)
-
Insulation: High-quality glass wool
-
Waste Container: Stainless steel
-
Lid/Door: Foot-lifted, radial lock system (wing nut optional) with interlock
-
Door Locking: Chrome-plated mild steel radial lock
-
Water Management: Manual filling and removal
-
Safety Features:
-
Radial locking mechanism
-
Safety valve
-
Pressure interlock
-
Low water detector
-
Pressure release valve
-
Water level indicator
-
-
Compliance: Optional 21 CFR Part 11 (₹30,000 extra)
-
Power Supply: 220V / 440V
Specifications:
| Hydrotest Pressure | 2.5 kgf/cm sq.g (35 psi / 40 psi) |
| Construction | The outer chamber is made of thick mild steel sheet duly degreased and treated with primer for rust proofing duly painted with attractive stove ename/power coated. |
| Working Pressure | 1.2 kgf/cm sq.g (15 psi - 17 psi) (Can be Upgraded up to 30 PSI) |
| Sterilizing Temperature | 121°C to 134°C (150°C - Optional) |
| Heat Average | <=±1°C |
| Sterilization Time | 25 to 30 Minutes |
| Digital Timer | 0 to 99 min |
| Outer Chamber | Mild Steel (304 stainless Steel – Optional) |
| Inner Chamber | 304 SS (316 / 316L grades Stainless Steel – Optional) |
| Insulation | Glass Wool |
| Waste Container | Stainless Steel |
| Door / Lid | Foot lifted with safety and interlock device |
| Door Locking type | Radial Type (Wing Nut Optional) |
| Water Filling & Removal | Manual |
| Safety Features | Radial locking, safety valve, low water detector and pressure interlock |
| Power Supply | 220 Volts / 440 Volts |
| Vertical Autoclave (Triple Walled) |
| Model No | Size (Diameter x Height) | Volume (Liter) |
| SI – VA/50TW | 500 x 300 mm | 50 |
| SI – VA/78TW | 400 x 600 mm | 8 |
| SI – VA/100TW | 450 x 600 mm | 100 |
| SI – VA/125TW | 450 x 650 mm | 125 |
| 450 x 650 mm | 550 x 750 mm | 175 |
| SI – VA/150TW | 500 x 750 mm | 150 |
| SI – VA/200TW | 500 x 900 mm | 200 |
